Marine pumps power many systems that boat owners depend on every day. Whether it’s keeping a bilge dry, supplying freshwater to sinks and showers, or circulating seawater through an air-conditioning system, the right pump is critical for reliability and safety.
The challenge is that “marine pump” is an umbrella term covering many different pump designs and applications. A bilge pump, freshwater pump, and seawater circulation pump may all be called marine pumps, yet they operate under different conditions and are designed to solve different problems.
This guide explains the major types of marine pumps, how they work, common failure points, and what to consider when selecting a pump for your vessel.
What is a marine pump?
A marine pump is any pump designed for use aboard a boat or ship. Marine pumps move liquids throughout a vessel for essential functions such as:
- Cooling engines
- Seawater circulation through air conditioners and chillers
- Freshwater supply for fixtures
- Bilge water removal
- Powering washdown systems
- Fuel transfer
- Livewell maintenance
While many pumps perform similar functions on land, marine pumps must withstand harsher operating conditions: increased vibration, humidity, salt exposure, corrosion, confined installation spaces, and continuous operation.
Common types of marine pumps
Diaphragm pumps
Diaphragm pumps use a flexible rubber membrane that expands and contracts to move liquid through the system.
Unlike centrifugal pumps, diaphragm pumps create strong suction and can self-prime, meaning they can pull water into the pump even when air is present in the line.
They are typically used for lower-flow applications where pressure, self-priming capability, and intermittent operation are more important than moving large volumes of water.
Freshwater pressure systems
Most onboard freshwater systems rely on diaphragm pumps to deliver water from storage tanks to sinks, showers, galley faucets, marine heads, and water makers.
Washdown pumps
Many washdown systems use diaphragm pumps to provide pressurized water for cleaning decks, cockpits, fishing equipment, anchors, and other surfaces. These pumps are designed to handle frequent starts and stops while maintaining consistent pressure.
Transfer pumps
Transfer pumps move water between tanks, compartments, or containers. Common applications include transferring freshwater between tanks or emptying holding tanks.
Bilge pumps (some applications)
While most bilge pumps are centrifugal, diaphragm pumps are sometimes used where self-priming capability or the ability to manage air in the suction line is important.
RVs, camper vans, and utility boats
Diaphragm pumps are widely used in mobile freshwater systems found in RVs, camper vans, workboats, skiffs, and small fishing boats.
Top of Form
Centrifugal pumps
Centrifugal pumps use a rotating impeller to accelerate water outward from the center of the pump housing.
Unlike diaphragm pumps, centrifugal pumps are designed to move large volumes of water continuously. They do not create strong suction and generally require water to be present at the pump inlet. However, once supplied with water, they can deliver significantly higher flow rates than diaphragm pumps.
Marine air conditioners and chillers
Marine HVAC systems rely on centrifugal pumps to circulate seawater through condensers and heat exchangers. These pumps often operate continuously whenever the climate-control system is running.
Livewell systems
Livewell pumps continuously circulate fresh seawater through bait tanks and livewells. Reliable flow is critical for maintaining bait health and supporting fishing performance.
Raw-water circulation systems

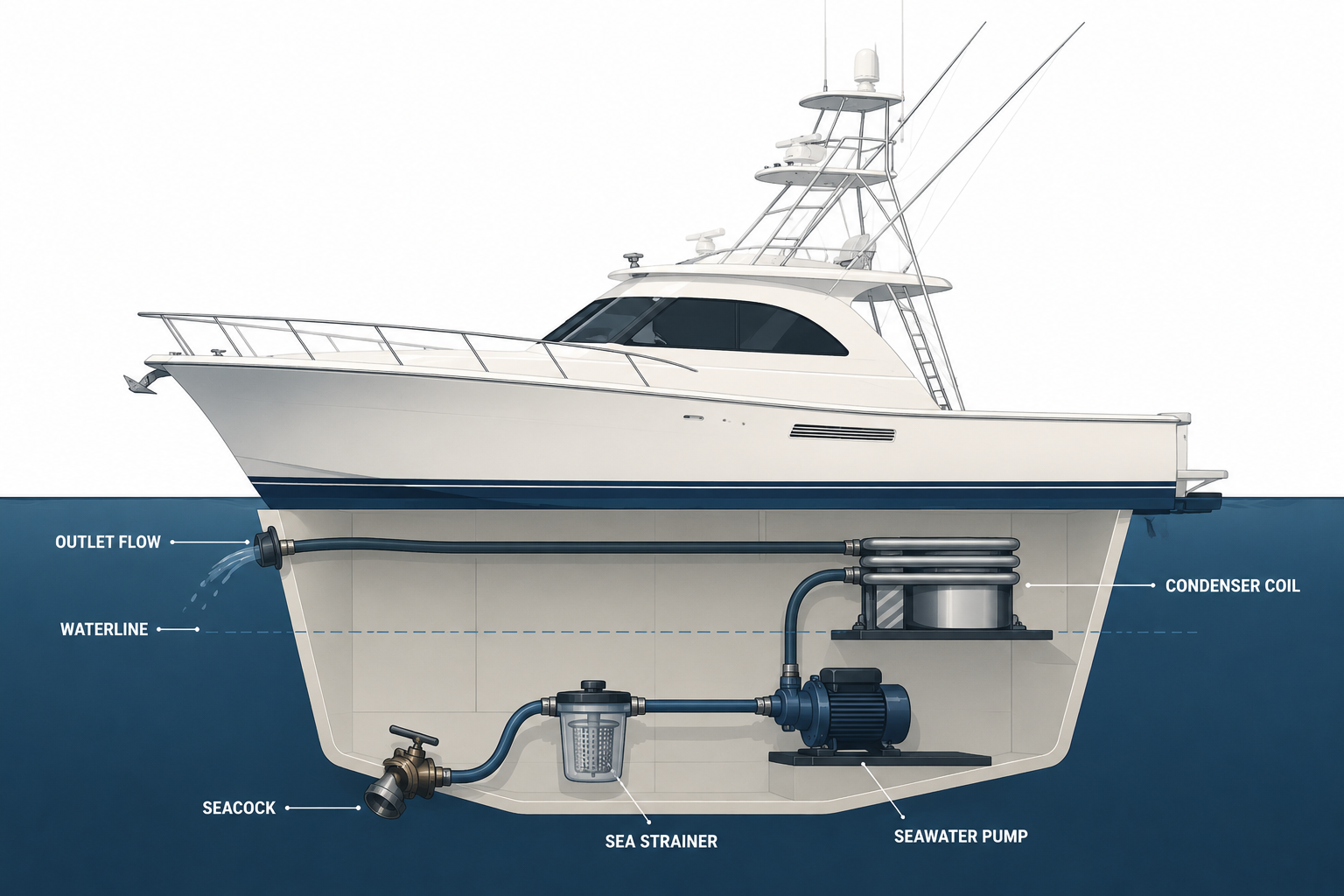

Many seawater circulation systems use centrifugal pumps to move water through cooling loops, heat exchangers, and other onboard equipment that requires continuous seawater flow.
Magnetic-drive seawater pumps
Some centrifugal pumps use a magnetic-drive design rather than a direct mechanical shaft connection. This eliminates traditional shaft seals and reduces leakage risk.
ElectroSea’s SeaStrong Silver Bullet RDP is a sealless magnetic-drive centrifugal pump designed for marine air-conditioning, chiller, and livewell applications.
Common causes of marine pump failure
Regardless of application, marine pumps tend to fail for a relatively predictable set of reasons.
Pressure-switch failures
Among freshwater systems, pressure switches are a surprisingly common failure point.
Boat owners routinely report situations where pumps continue running, fail to start, cycle excessively, or stop responding altogether because of switch issues rather than motor failures.
Running dry
Running a pump without water can cause significant damage.
Friction can rapidly generate heat inside a pump, potentially melting or damaging internal components. As such, traditional magnetic-drive pumps can fail in as little as three minutes under run-dry conditions.
This issue is especially important in seawater systems where a blocked intake or loss of prime can interrupt water flow.
A plastic bag or sea life clogging the impeller are common culprits of expensive pump failure.

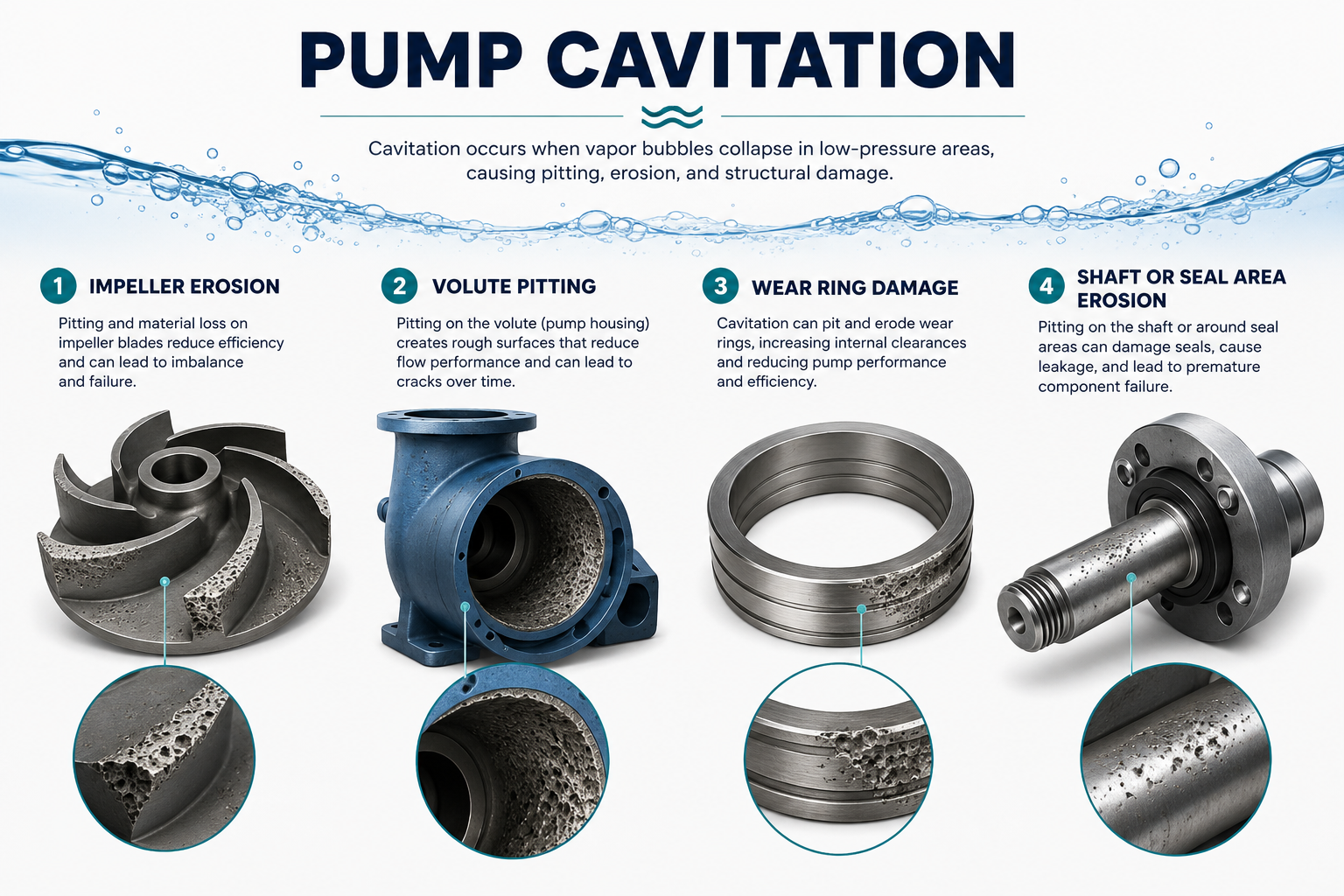

Cavitation
Cavitation occurs when the pump is “starved” for water. If a clogged raw water strainer, blocked intake, or other restriction prevents enough water from reaching the pump, pressure can drop low enough for tiny vapor bubbles (microscopic pockets of boiling water) to form.
When those bubbles collapse inside the pump, they create microscopic shock waves that can gradually damage internal components. Cavitation often causes reduced flow, increased noise, vibration, and premature pump wear.
Running dry vs cavitation
Cavitation and dry-run errors often go hand in hand but are two separate phenomena. Dry running happens when there is not enough water present to prime (cool and lubricate) the pump, whereas cavitation means that water pressure has dropped so low that it is creating vapor (“boiling”) bubbles that collapse and damage the pump.
Generally, running a pump dry is more destructive with severe, immediate damage while cavitation is more “death by a thousand cuts.”
Corrosion
Corrosion is one of the most persistent threats to marine pumps because seawater is highly conductive and naturally corrosive.
Over time, salt exposure can attack pump housings, impellers, fasteners, and other metal components. Corrosion may appear as surface rust, pitting, material loss, or weakened structural integrity. In severe cases, corrosion can create leaks, reduce pump efficiency, or cause catastrophic component failure.
Corrosion often develops gradually, making it easy to overlook until performance problems emerge. Regular inspection and the use of corrosion-resistant materials such as stainless steel or engineered polymers can help extend pump life.
Seal failures
Many traditional seawater pumps use a mechanical shaft seal to prevent water from leaking where the rotating shaft passes through the pump housing.
While effective, shaft seals wear down over time. Heat, friction, vibration, corrosion, and normal operation degrade sealing surfaces. As seals wear, pumps may begin slowly (if not rapidly) leaking.
In addition to water loss, leaky seals allow moisture to reach bearings and motors, accelerating wear and increasing risk of pump failure. Because seal degradation often occurs gradually, boat owners often notice the problem as something minor or “weird.” They notice a persistent drip, unexplained moisture in the bilge, or salt buildup.
A swift response matters. Shaft-seal leakage is a common issue – and often the most common reason for pump failure and replacement.
That’s why some pumps, like the SeaStrong Silver Bullet RDP, are built without a seal. The SeaStrong pump uses a sealless magnetic-drive design rather than a conventional shaft seal.
Marine growth and biofouling
Marine growth is another common cause of reduced pump performance – or even failure.
As seawater moves through pumps, strainers, hoses, and heat exchangers, it carries microscopic organisms that can attach to internal surfaces. Over time, algae, barnacles, mussels, slime, shell growth, and other biofouling accumulate.
At first, the growth may have little noticeable effect. But as the deposits build, they narrow plumbing diameter and restrict water flow. The pump must work harder to move the same volume of water, increasing energy consumption and reducing overall system efficiency.
Boat owners often first notice fouling as:
- Reduced air-conditioner cooling performance
- Lower flow rates from discharge outlets
- Increased pump run times
- More frequent strainer cleanings
- Rising operating temperatures
Marine growth can also contribute to other pump problems, such as cavitation, reduced cooling effectiveness, and accelerated system wear.
Low-flow and dead-space areas within pump housings can be particularly vulnerable, as marine growth is drawn to stagnant water.
Marine pump maintenance tips
While maintenance requirements vary by pump type, several best practices apply across most systems.
Inspect pumps regularly to look for:
- Leaks
- Corrosion
- Loose fittings
- Unusual noises
- Excessive vibration
- Reduced flow
Many pump failures provide warning signs before complete failure occurs.
Keep strainers clean
Raw-water systems rely on unrestricted water flow.
Clogged strainers increase pump workload, reduce cooling efficiency, and can contribute to overheating and run-dry conditions.
The best sea strainers offer dependable, long-term performance with minimal maintenance requirements.
Test bilge pumps frequently
It’s smart to routinely test bilge pumps and float switches rather than just assuming they’re still working correctly.
Consider an accumulator tank
Freshwater systems often benefit from accumulators (small pressure tanks installed in freshwater plumbing systems).
Multiple boat owners report reduced cycling, quieter operation, and longer pressure-switch life after adding accumulator tanks.
Maintain clean electrical connections
Marine environments are hard on electrical systems.
Corrosion, moisture, and vibration can all affect pump performance and reliability.
How to choose the right marine pump
Selecting the right marine pump starts with understanding the application.
A bilge pump, freshwater pump, and seawater circulation pump all have different operating requirements so you can match the pump to the job.
Start by identifying:
- Fluid being pumped
- Required flow rate
- Required pressure
- Duty cycle
- Installation constraints
Understand flow rate
Flow rate is typically measured in gallons per minute (GPM).
The required flow depends on the application. Livewells, air-conditioning systems, and freshwater systems all have different flow requirements.
SeaStrong Silver Bullet RDP models, for example, range from approximately 30 GPM to 150 GPM depending on configuration.
Understand head pressure
Head pressure refers to the resistance a pump must overcome to move liquid through a system.
Real-world pump performance is influenced by plumbing design, filters, valves, bends, strainers, lift requirements, and other system restrictions.
This is why advertised flow ratings often differ from actual onboard performance.
Consider reliability, not just price
Many experienced boat owners focus on serviceability, spare parts availability, and long-term reliability rather than simply purchasing the least expensive option.
They’ve found that a slightly higher upfront investment can reduce downtime, maintenance, and replacement costs over the life of the vessel.
Modern seawater pump design
Seawater systems present challenges that freshwater systems do not.
Engineers must account for:
- Corrosion
- Marine growth
- Run-dry events
- Cavitation
- Scale buildup
- Continuous operation
As a result, many modern seawater pumps have evolved beyond traditional direct-drive designs.
Sealless magnetic-drive pumps like the SeaStrong Silver Bullet RDP eliminate shaft seals, reducing leakage risks. The SeaStrong uses computational fluid dynamics (CFD) to optimize low-flow paths and reduce dead zones where marine growth may accumulate.
These design changes improve reliability while reducing maintenance requirements.
SeaStrong Silver Bullet RDP Marine Pump
ElectroSea developed the SeaStrong Silver Bullet RDP (Run-Dry Pump) for marine air conditioning, chillers, and livewell applications.
The SeaStrong is ElectroSea’s third-generation seawater pump.
Key features include:
- Sealless magnetic-drive design
- Run-Dry Protection technology
- IP55-rated stainless-steel washdown motor
- Composite wetted components
- Reinforced 316L stainless inlet ring
- Rotatable pump head
- Flow rates up to 150 GPM depending on model
Unlike traditional direct-drive pumps with shaft seals, SeaStrong’s magnetic-seal design eliminates the mechanical seal closure entirely.
The pump also incorporates patented RunDry Protection technology designed to withstand temporary loss of water flow during events such as clogged strainers, blocked intakes, or system faults.
Summary
Marine pumps may perform very different jobs aboard a vessel, but they share a common goal: Moving water reliably when you need it most.
Whether you’re protecting your boat with a bilge pump or powering a marine air-conditioning system, the right pump is about more than flow rate alone. Reliability, maintenance requirements, corrosion resistance, serviceability, and overall system design all play critical roles in long-term performance.
Understanding the strengths and limitations of each pump type can help you choose a solution that keeps your boat running smoothly and reduces the likelihood of unexpected failure.
