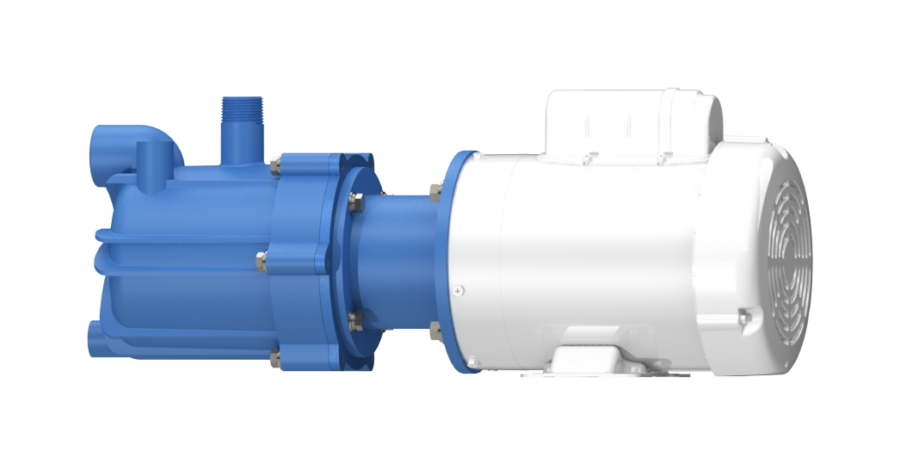

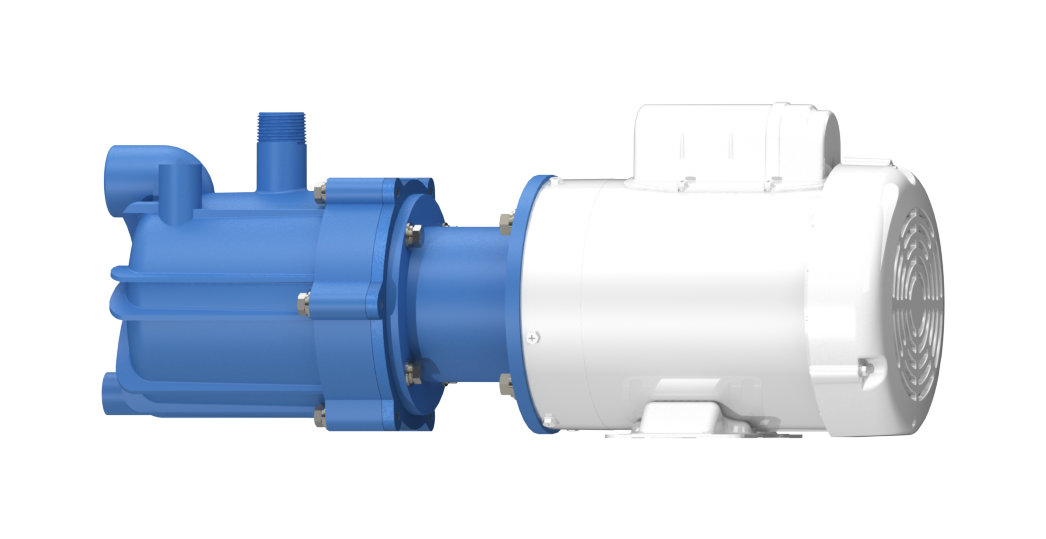

SeaStrong ST-1015-W

  • 1” FNPT input / 1” MNPT output
  • 1 hp
  • 30 gpm @ 48 ft of head
  • Self-priming
  • White epoxy motor
  • Single-phase motor

Category

Product Description

SeaStrong ST-1015 is a self-priming, seal-less magnetic drive, centrifugal design to ensure reliable performance and unparalleled pump durability. It has a 1” FNPT input and 1” MNPT output, 1-hp, single-phase motor offered in stainless steel (ST-1015-S) or white epoxy (ST-1015-W).



SeaStrong ST-1015 curve



SeaStrong ST-1015 line drawing

Product Information

  • Applications

    • Air conditioner
    • Chiller
    • Refrigerator
    • Livewell
    • Seawater and corrosive fluids
  • Features

    • Self-priming
    • Seal-less, magnetic drive
    • Close coupled pump
    • Centrifugal design
    • Glass-filled polypropylene head
    • Reinforced 316L input ring
    • Washdown, IP55-rated motor
    • White epoxy
  • Technical Data

    • NPT Connections
    • TEFC Motor
    • Single Phase
    • NEMA 56C Frame

Pump Specifications

Input

1″ FNPT

Output

1″ MNPT

HP

1

Max flow

55 gpm

Max head

56 ft

Phase

1

Voltage

208-230 VAC

Current

6.2 Amp

Frequency

60 Hz

Exterior

White epoxy exterior

Note: product images for illustration purposes only and may not be an exact representation of the product.
ElectroSea reserves the right to change product images and specifications at any time without notice.
