SeaStrong SW-2250-W

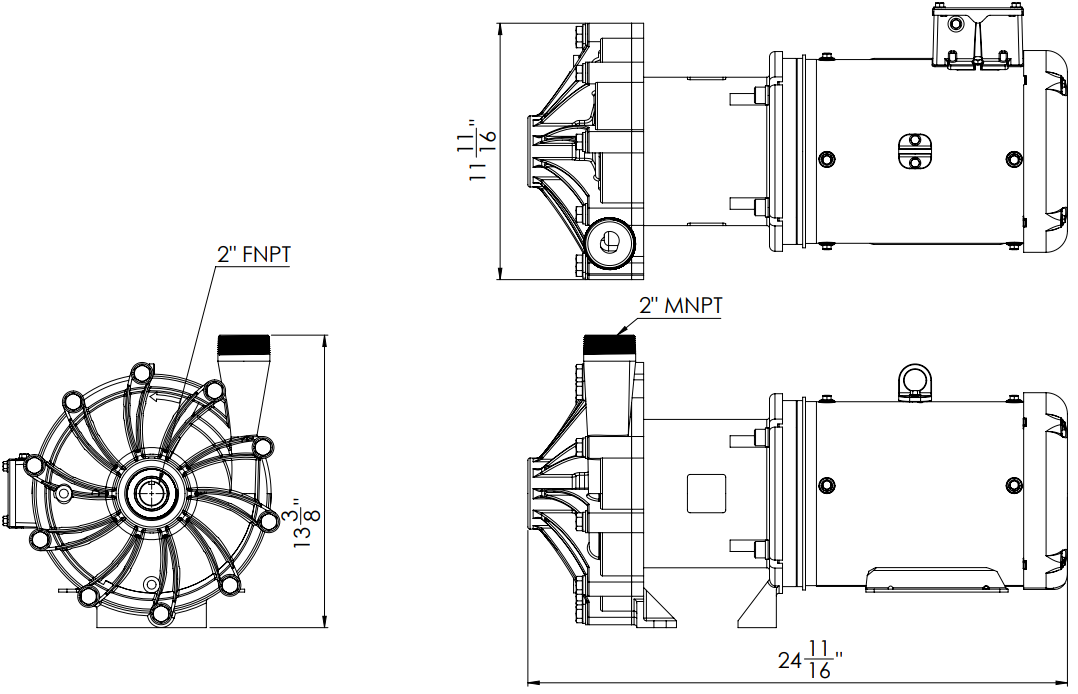

2” FNPT input / 2” MNPT output
5 hp
60 gpm @ 78 ft of head
White epoxy motor
Three-phase motor

Category SeaStrong Pumps

Product Description

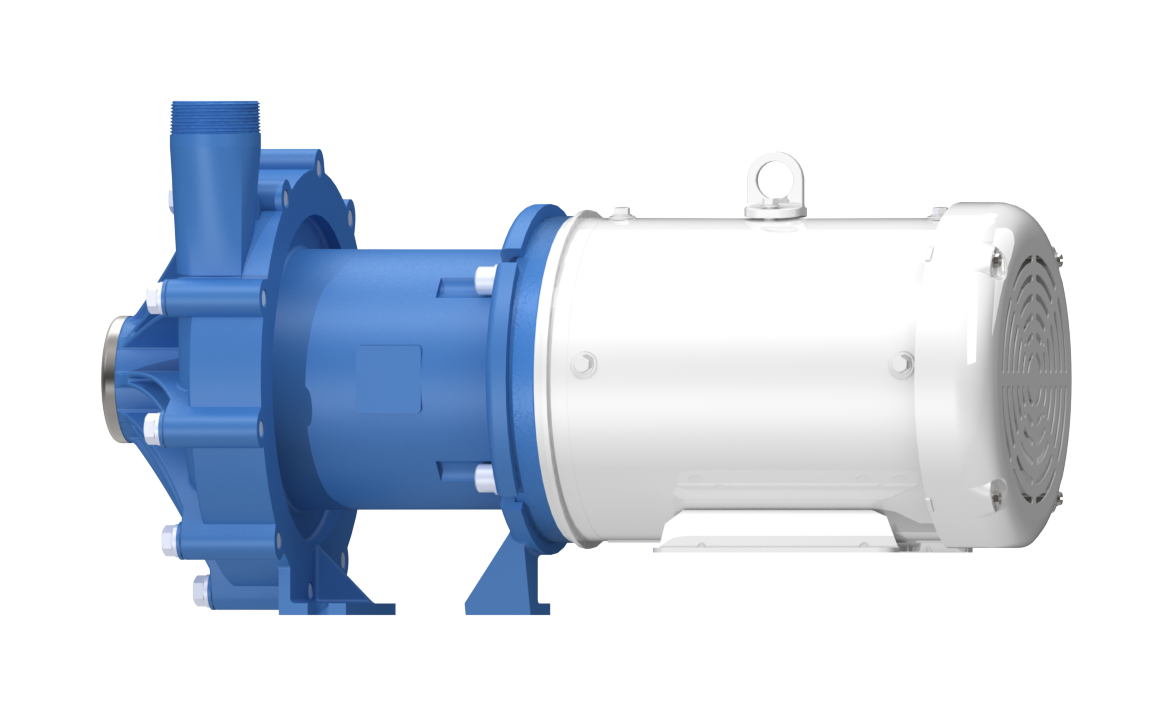

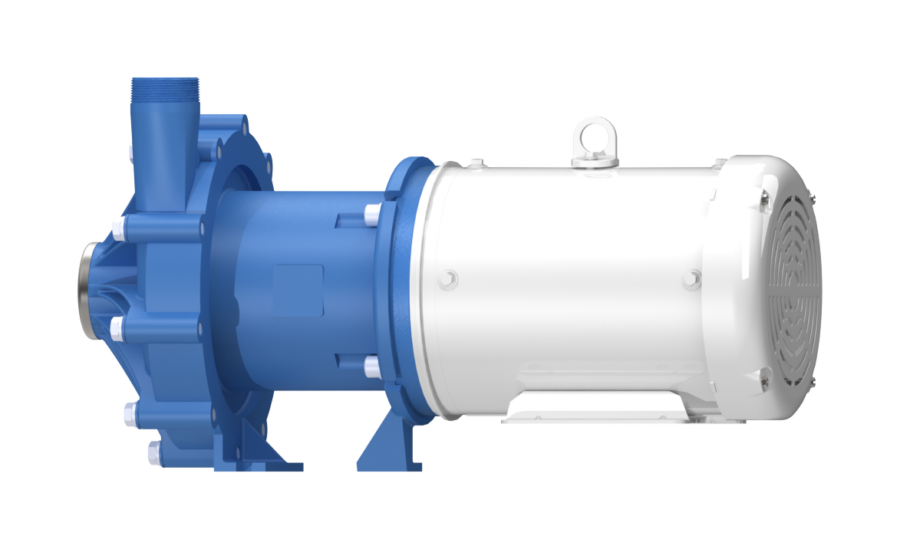

SeaStrong SW-2250 is a seal-less magnetic drive, centrifugal design to ensure reliable performance and unparalleled pump durability. It has a 2” FNPT input and 2” MNPT output, 5-hp, three-phase motor offered in stainless steel (SW-2250-S) or white epoxy (SW-2250-W).

Product Information

Features

Applications
• Air conditioner
• Chiller
• Refrigerator
• Livewell
• Seawater and corrosive fluids
Features
• Seal-less, magnetic drive
• Close coupled pump
• Centrifugal design
• Glass-filled polypropylene head
• Reinforced 316L input ring
• Washdown, IP55-rated motor
• White epoxy
Technical Data
• NPT Connections
• TEFC Motor
• Three Phase
• NEMA 56C Frame

Specifications

Pump Specifications

Input	2″ FNPT
Output	1.5″ MNPT
HP	5
Max flow	125 gpm
Max head	82 ft
Phase	3
Voltage	230/460 VAC
Current	12.0/6.0 Amp
Frequency	60 Hz
Exterior	White epoxy exterior

Manuals & Documentation

SeaStrong Brochure

SeaStrong™ Pump Catalog

SeaStrong™ Pump Manual

Note: product images for illustration purposes only and may not be an exact representation of the product.
ElectroSea reserves the right to change product images and specifications at any time without notice.
