ElectroStrainer ES-150 by ElectroSea

Biofouling prevention and sea-strainer system

ElectroStrainer is the first all-in-one smart biofouling-prevention system with integrated sea strainer for boats and replaces old-style sea strainers. ElectroStrainer prevents biofouling from its strainer basket through all seawater lines and combines three components: an innovative biofouling prevention device, a hydrodynamic sea strainer, and an advanced smart flow monitoring system.

Replace your existing sea strainer with ElectroStrainer

ElectroStrainer prevents marine growth by generating chlorine directly inside its sea strainer basket. ElectroStrainer is plumbed in place of a traditional sea strainer. It can be installed during new build or refit. Simply connect the ElectroStrainer canister inlet and outlet ports after the seacock and connect the Control Unit to 12/24 VDC.

ElectroStrainer animated diagram

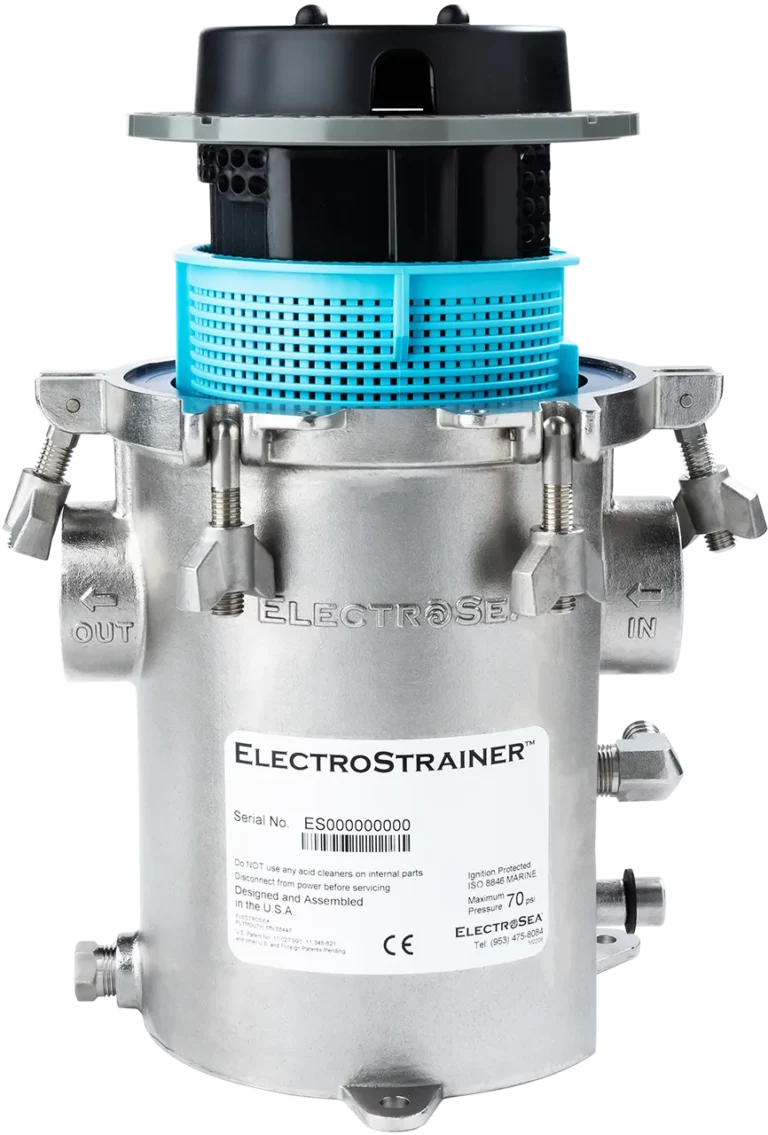

ElectroStrainer ES-200 expanded by ElectroSea

More flow – no grow

 BIOFOULING PREVENTION DEVICE  The smart biofouling prevention device is nested directly in ElectroStrainer’s basket and uses advanced electrochlorination technology to generate a low-level of chlorine as seawater enters the boat. This process creates an environment where barnacles simply can’t live.

 HYDRODYNAMIC STRAINER  ElectroStrainer’s integrated strainer basket is hydrodynamically optimized to diffuse chlorinated seawater throughout the entire basket and has a large surface area to effectively strain debris from passing seawater, with minimal pressure drop.

 2205 ALLOY CANISTER  ElectroStrainer’s super duplex 2205 stainless alloy canister is one of the strongest, most corrosion-resistant materials in the marine industry. ElectroStrainer has a fully cast one-piece strainer body, eliminating any weaknesses inherent at welded joints, and undergoes a special finishing process to provide a unique chromium-rich shine. Wing nuts offer easy access to the strainer basket with no tools required. Cast-in mounting feet, bonding terminal, and drain port are integrated into the elegant design. Not only are the materials better than any other strainer in the world, our robust design and function provides unrivalled performance.

Smart sea-strainer system

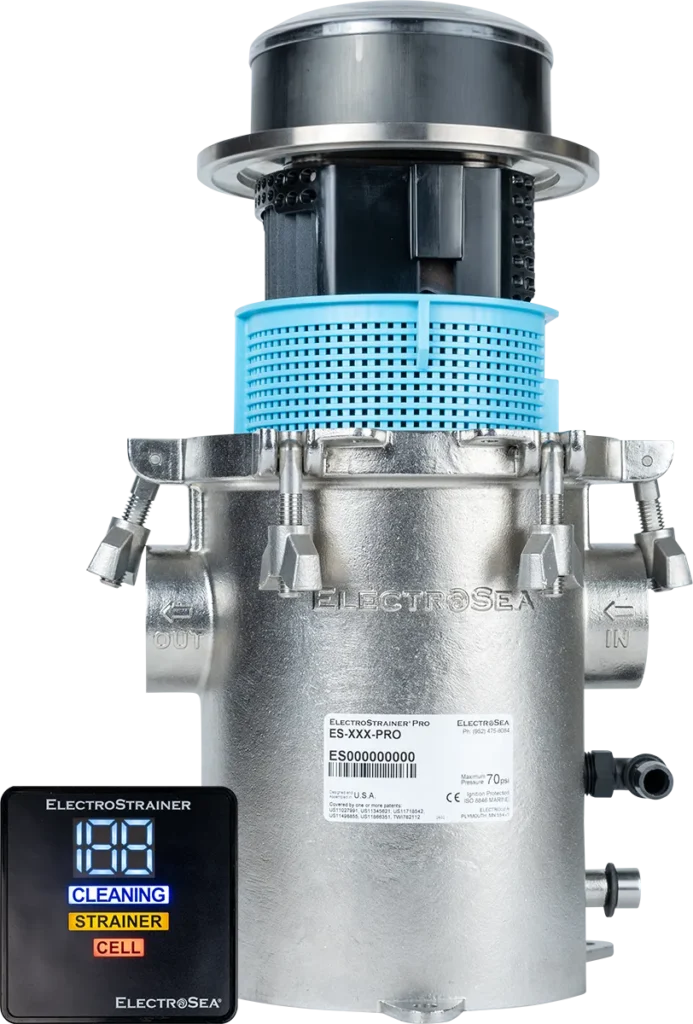

Instead of peering through a dirty site glass or opening the strainer and making a mess in your engine room, simply look at ElectroStrainer’s digital display. ElectroStrainer alerts you if the internal strainer basket needs attention with its “CHECK STRAINER” smart alert. ElectroStrainer tells you exactly how much seawater is flowing through your seawater system in real time. ElectroStrainer assures you it’s generating chlorine and protecting your boat’s cooling systems. ElectroStrainer has no scheduled maintenance and forever changes the industry’s approach to seawater management.

We'll help you select an ElectroStrainer for your boat's air conditioners and chillers.

ElectroStrainer fits center consoles, cruisers, sportfishers, sailboats, and superyachts. Select an ElectroStrainer that replaces your existing A/C sea strainer.

Product FAQs

Installation process

Most installations can be completed in 1-2 days.

Yes! ElectroSea products can be installed while the boat is in the water.

ElectroStrainer is about the same size as a traditional sea strainer.

Certain ElectroSea products can be installed by end-users. Contact ElectroSea for more information.

Chemicals or additives

Seawater flows through titanium plates that are coated with a special metal oxide catalyst. When this coating is electrified by DC current, a chemical reaction occurs and NaOCl (chlorine) is generated.

ElectroSea’s ClearVis contact-less flow sensor measures seawater flowing through the intake. Flow-rate data from ClearVis is sent to the Control Unit and specifies precisely how much chlorine ElectroStrainer or ClearLine should generate in real time.

No chemicals or additives are required. ElectroStrainer and ClearLine electrochemically generate a low, safe level of chlorine directly from the seawater that flows through our systems. There are no chemicals that are added, and you’ll never need to descale your lines again!

Acid descaling does not prevent biofouling and marine growth. It is an expensive process that you have to perform over and over again. If you have ElectroStrainer or ClearLine, then you Never Have to Descale Again!

Learn More

Maintenance and warranty

ElectroStrainer and ClearLine are warrantied for a period of two years from the date of end-user purchase.

ElectroSea will NOT void your air conditioner, chiller, or pump warranty. ElectroSea is safe to use with any marine air conditioner, chiller, and seawater pump. ElectroSea actually helps your equipment work more efficiently as it keeps your condenser coils free and clear of marine growth. ElectroSea has over 11 million successful run hours on 65+ boat brands.

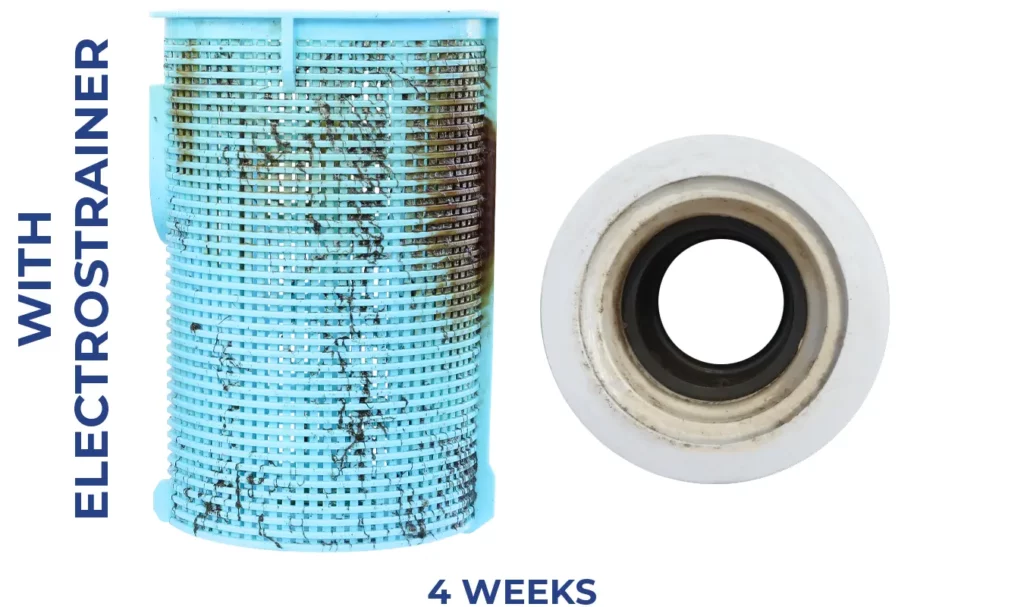

There is no scheduled maintenance. The Control Unit will tell you if you have “Low Flow / Check Strainer” alert. If so, simply remove the strainer basket and screen and rinse with fresh water.

The electrochemical cell will last two to five years depending on use hours, flow rate, and other factors.

There is a red “cell” light on the Control Unit that will be illuminated at the end of life.

Safe for my boat, air conditioner and the environment?

Yes – ElectroStrainer and ClearLine are safe for your boat. ElectroSea has over 11 million successful run hours on 65+ boat brands and is standard / option on major brands.

Yes – ElectroStrainer and ClearLine are safe for air conditioners with copper nickel heat exchangers. ElectroSea creates about the same amount of chlorine found in tap drinking water. Further, preventing biofouling with ElectroSea is better then frequent “acid descaling,” which actually strips away a small layer of copper nickel each time it is performed.

Yes – ElectroStrainer and ClearLine are electrically isolated and will NOT cause galvanic corrosion.

Yes – ElectroStrainer and ClearLine are safe for the environment and generate about the same level of chlorine in tap drinking water. Chlorinated seawater has a very short half-life with 66% being oxidized in less than 1 minute. Chlorine is safer than frequent “acid descaling” that uses hydrochloric and other harsh acids which are toxic and harmful to humans.

ElectroStrainer and ClearLine require seawater with salinity greater than 20 parts per thousand (ppt). Vessels often encounter brackish or fresh water when cruising inland and from extended storms and freshwater run-off. This low salinity will not harm ElectroStrainer and ClearLine, and they will begin generating chlorine again when salinity is adequate.
