ClearLine CL-990-X1.5

1 1/2″ NPT (DN40)
Optimal Flow: 15-30
Min/Max Flow: 10-50

Category ClearLine

Product Description

ClearLine CL-990-X1.5 is a vessel electrochlorination system suited for vessels with 1 1/2″ NPT (DN40) inlet/outlet connections. Use ClearLine when you want to retain your existing sea strainer. ClearLine is plumbed in on the pressure side of your seawater pump and located after your existing sea strainer. A secondary “return chlorination line” t-fitting can be added to provide limited chlorinated seawater (10-20%) to your existing strainer basket.

Product Information

Features

Real-Time Flow
Know your seawater flow rate in real time. Gone are the days of peering through a site glass and guessing your flow rate.
Bright Backlit Display
Our super-bright backlit display is easy to see in the engine room. Contrast and brightness settings let you adjust for any lighting condition.
Powder-Coated Metal Case
The Control Unit case is beautifully finished in white powder coat over aluminum. Its rugged design is strong and looks good in your engine room.
Built-In 10-amp Breaker
The built-in 10-amp breaker provides additional protection for your vessel.
Water-Resistant Connectors
Every aspect of our products, down to the connectors, are designed to withstand the rigors of the marine environment. Triple-sealed connectors prevent water intrusion.
LED Status Lights
LED lights provide operating status at a glance. Bright green and red Power, Cleaning and Cell lights are easy to see even from across your engine room.

Specifications

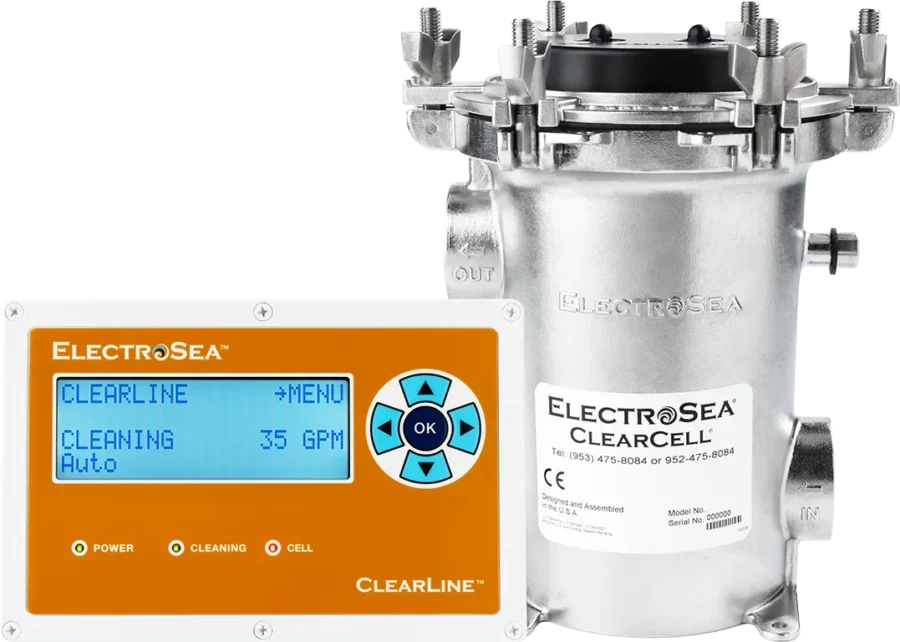

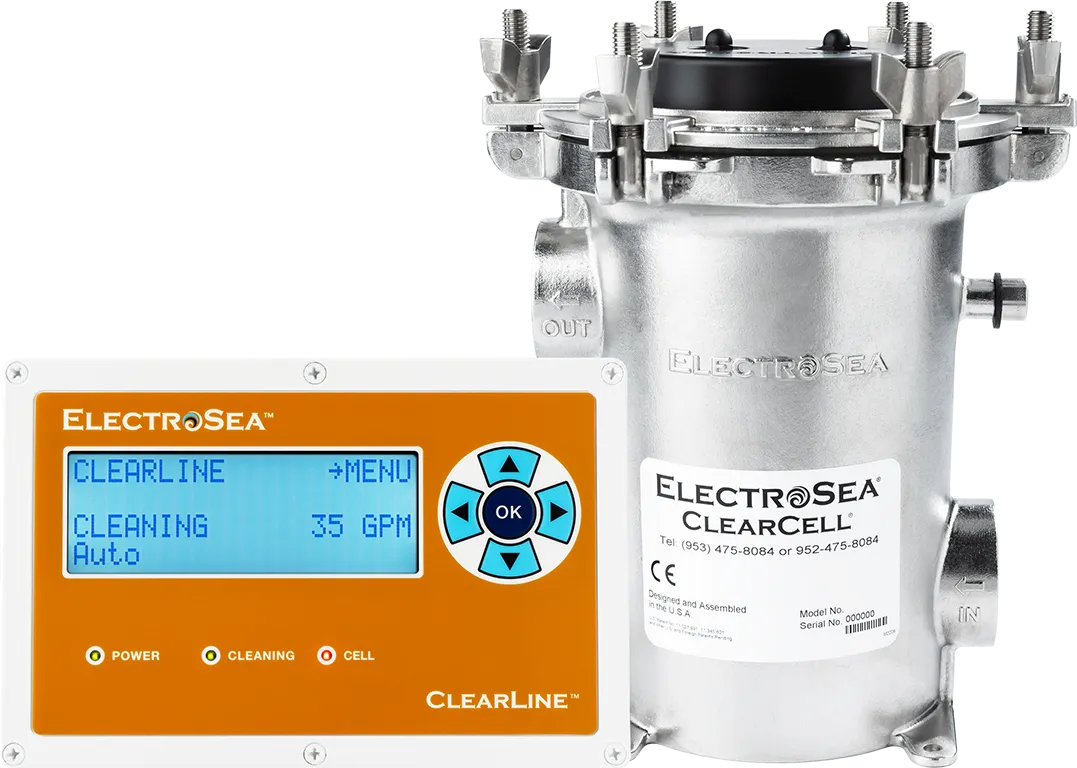

Control Unit Specs

Dimensions (LxWxH)	8.76 x 5.75 x 3.24 inches 222.50 x 146.05 x 82.30 mm
Weight	4 lb 6 oz 1.98 kg
Electrical	24 VDC
Internal Circuit Breaker	10 amps
Cables Included	Power: 20’ ClearCell: 20’ Flow Sensor: 20’
Mounting	Wall mount in engine room

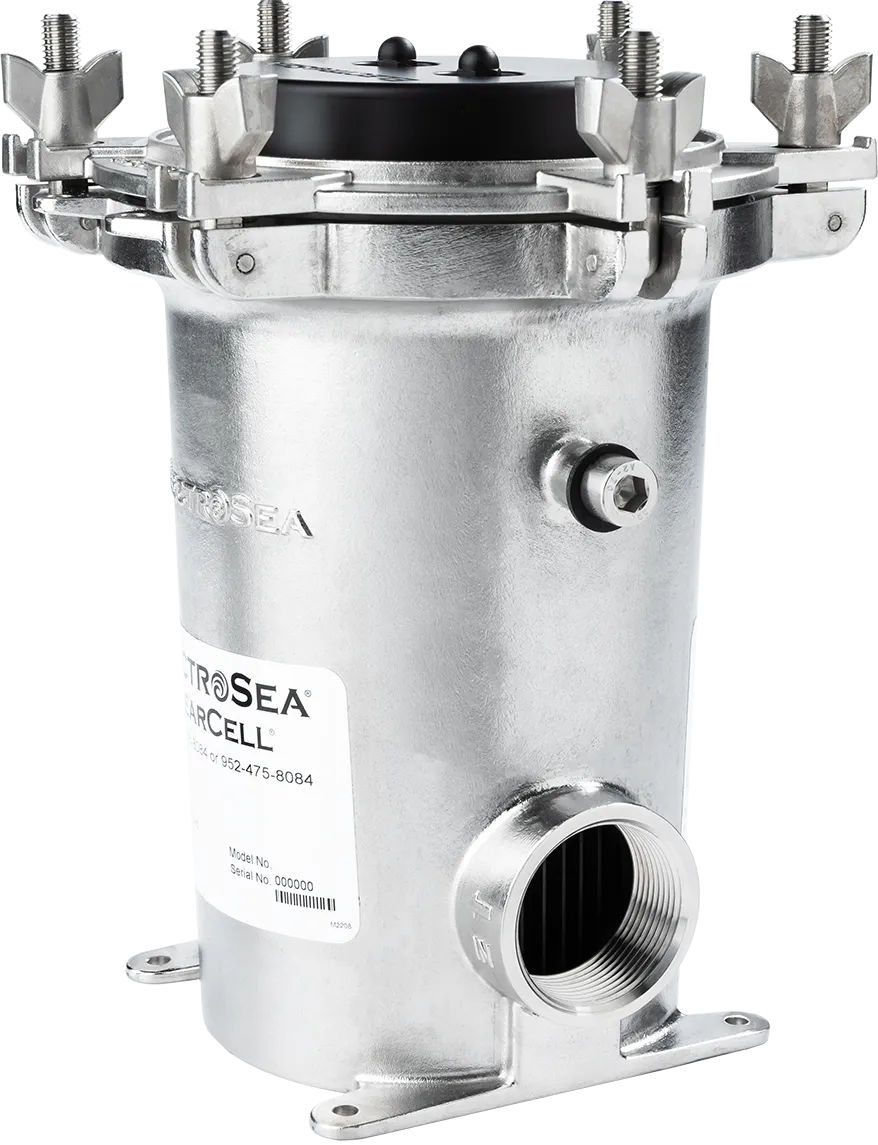

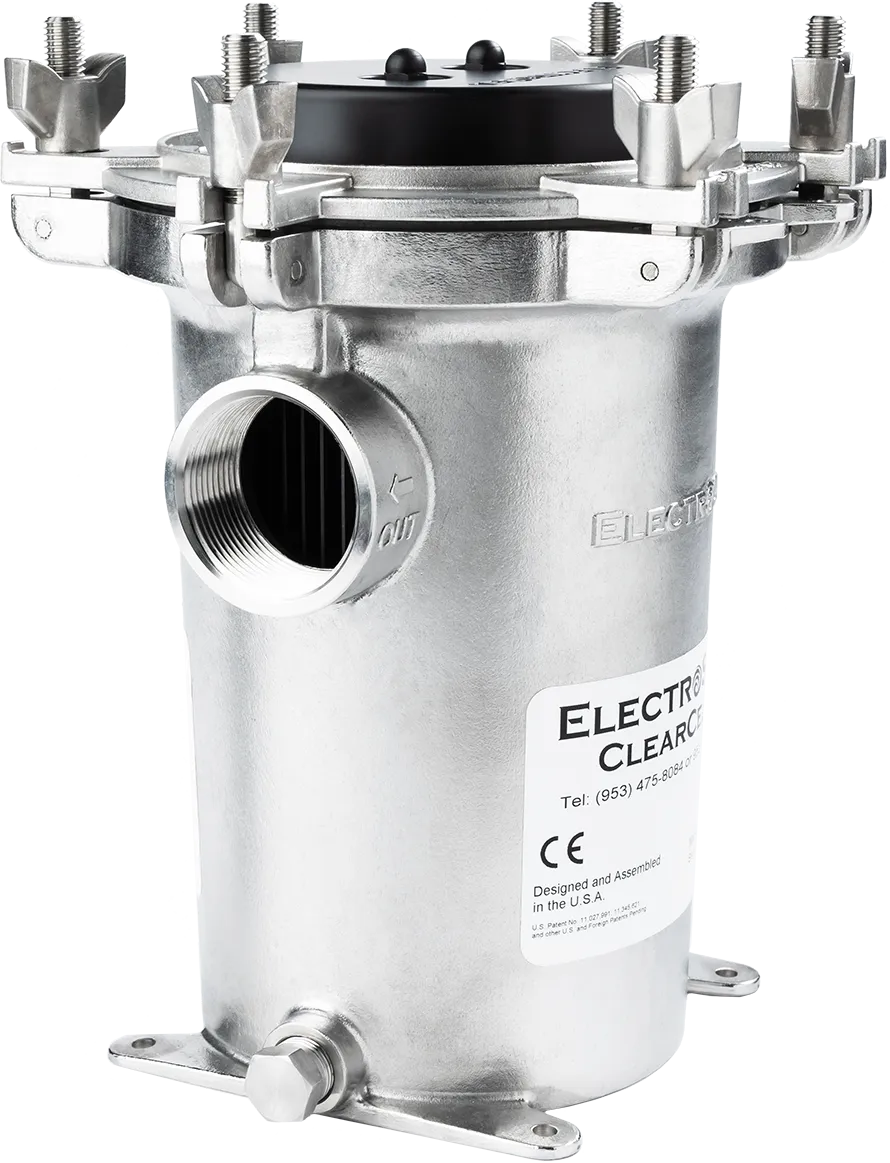

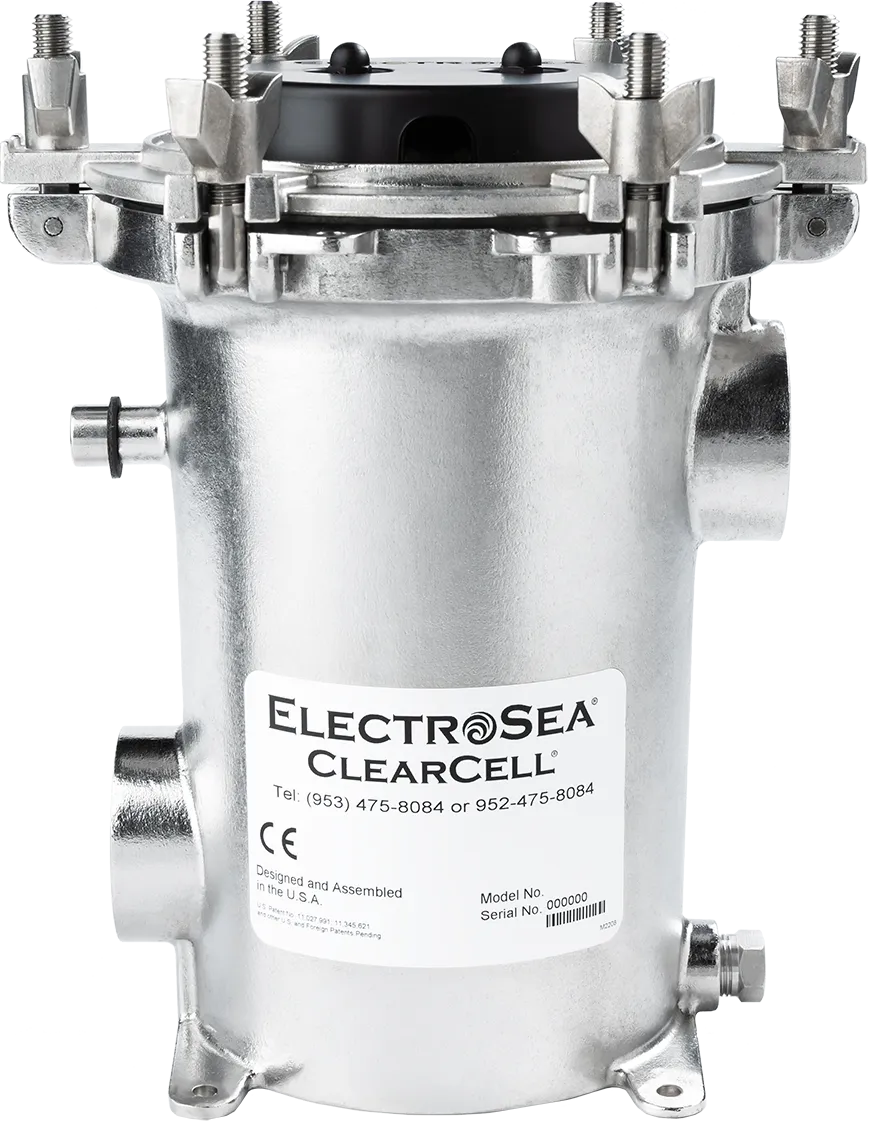

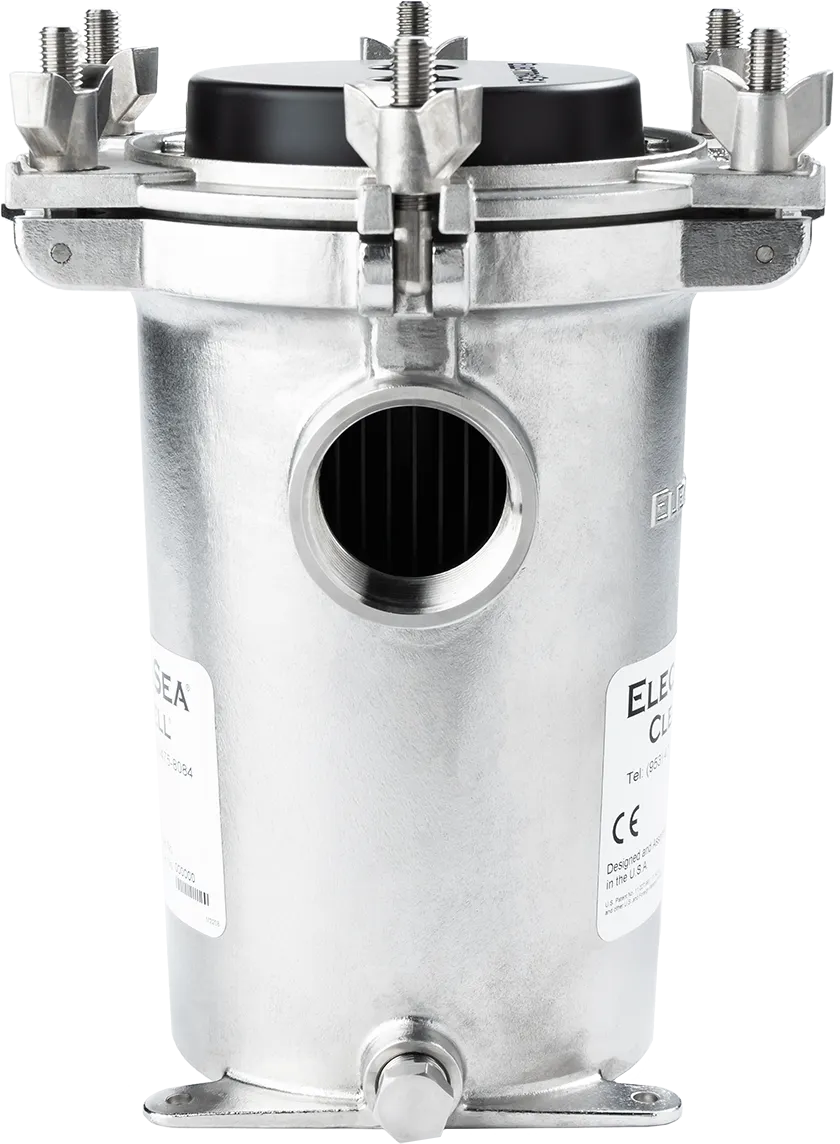

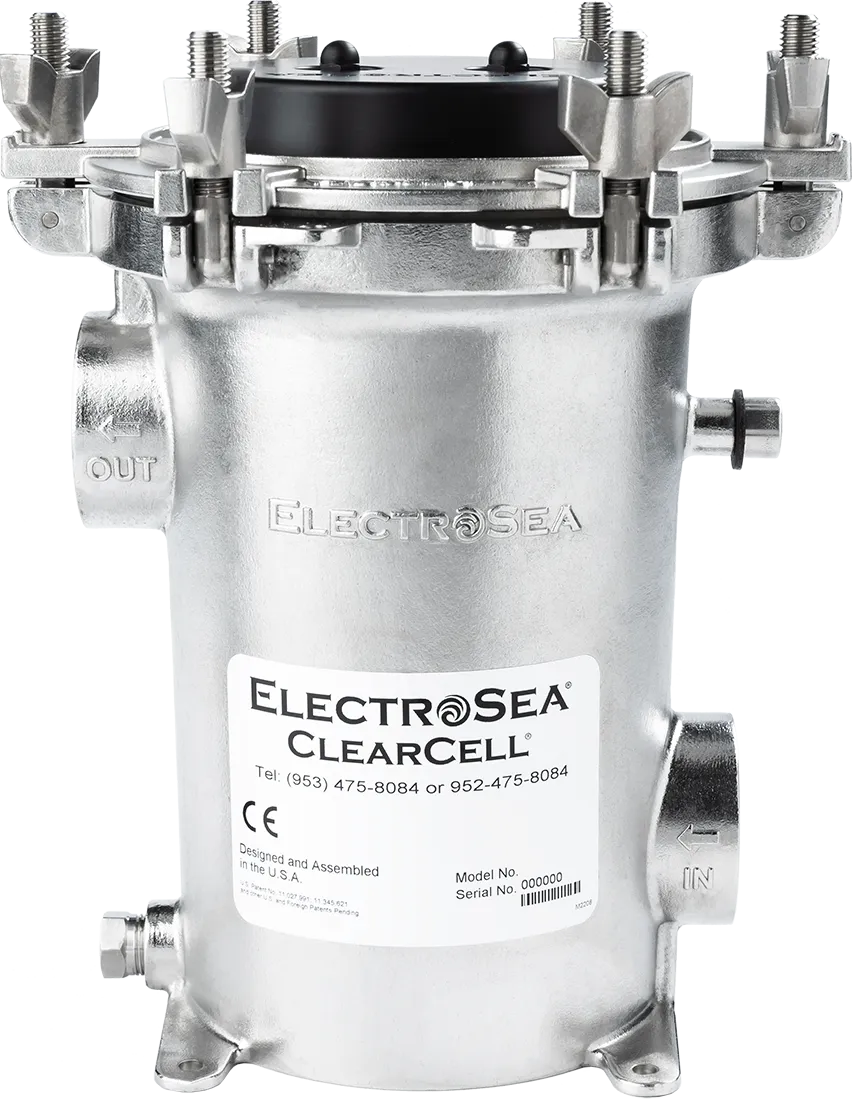

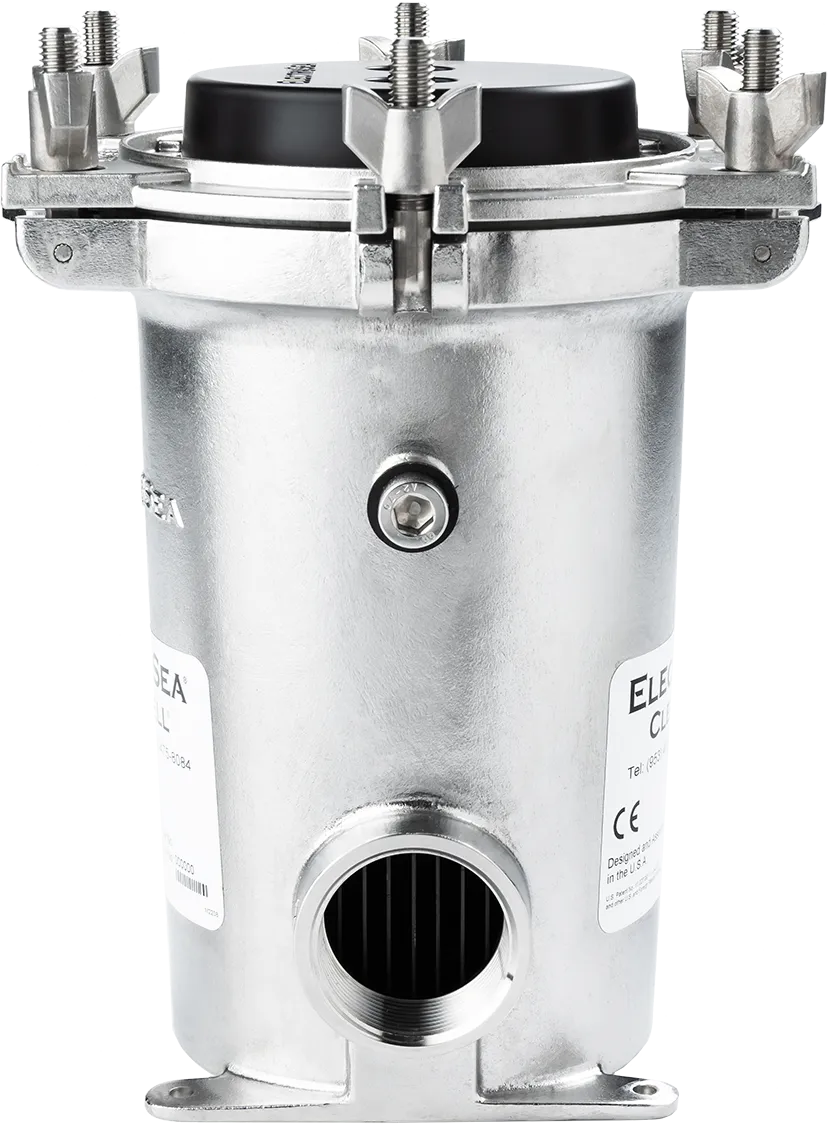

Canister Assembly Specs

Inlet / Outlet Port Size	1 1/2″ (DN40)
Optimal Flow Rate	15-30 gpm
Min / Max Flow Rate	10-50 gpm
Dimensions (LxWxH)	8.16 x 5.31 x 10.91 inches 207.26 x 134.87 x 277.11 mm
Weight	19 lb 8.62 kg
Maximum Operating Pressure	70 PSI
Mounting Options	Base floor bracket or side arm bracket

Manuals & Documentation

CL-990 Installation Manual

CL-990 Operation Manual

ClearLine® Brochure

ClearLine® Referral Card

ClearLine® Small Marketing Card

Note: product images for illustration purposes only and may not be an exact representation of the product.
ElectroSea reserves the right to change product images and specifications at any time without notice.
