SeaStrong SB-137M-1171D-463-2T

  • 2” FNPT inlet / 1.5” MNPT outlet
  • Max Flow 115 gpm
  • 230 VAC Prewired
  • 2 hp
  • Single-phase motor
Category

Product Description

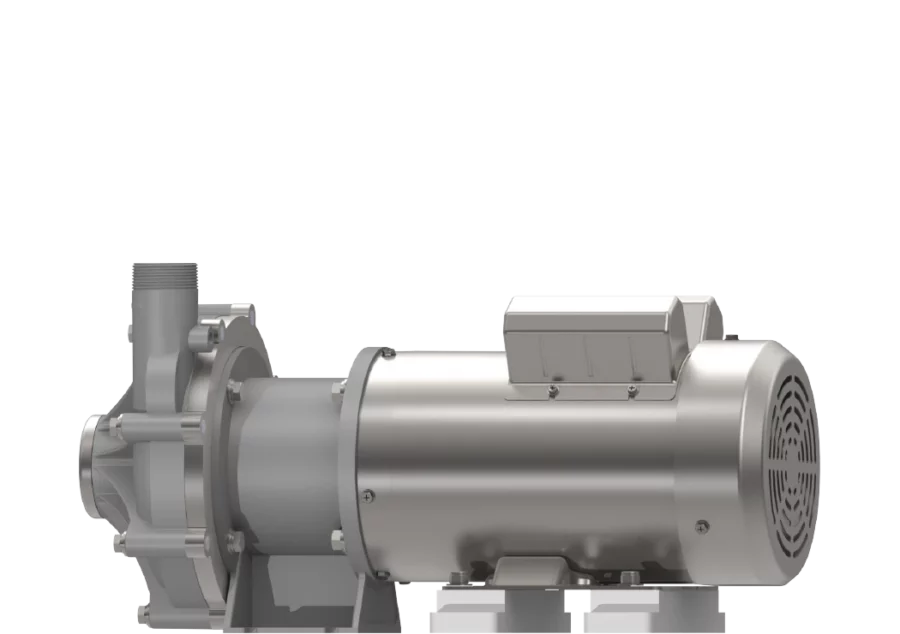

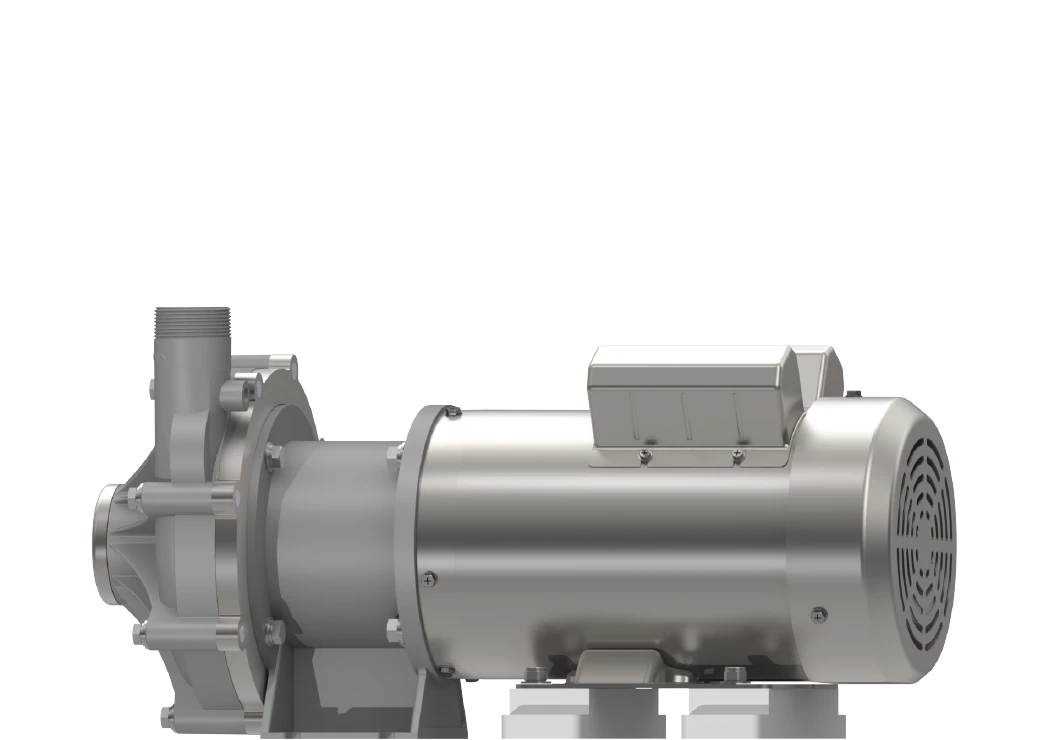

SeaStrong SB-137M-1171D-463-2T is a sealless magnetic drive, centrifugal design to ensure reliable performance and unparalleled pump durability. It has a 2” FNPT inlet, a 1.5” MNPT outlet, and a 2-hp, single-phase, stainless-steel motor prewired for 230 VAC.

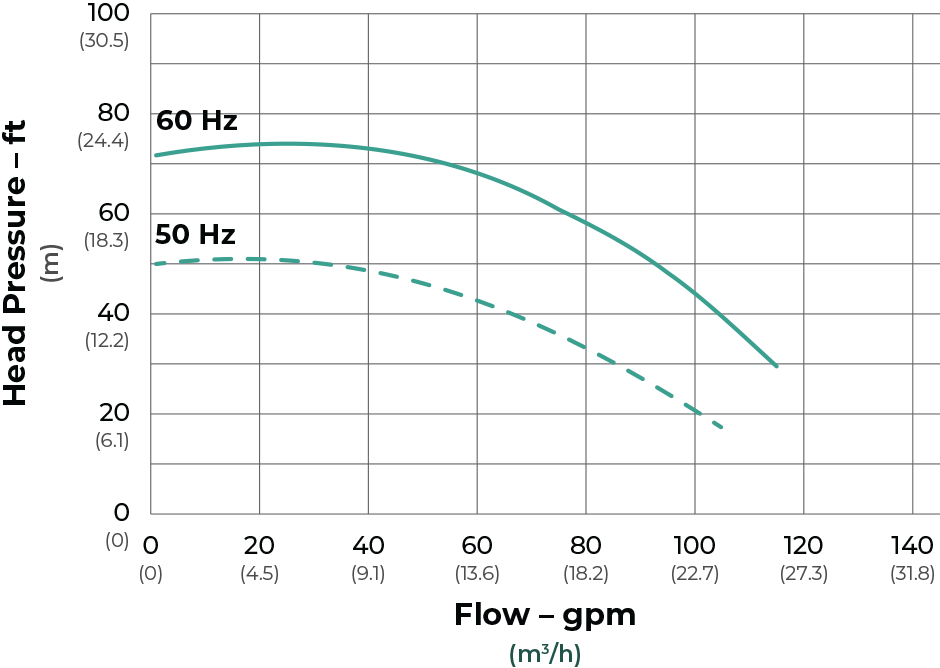

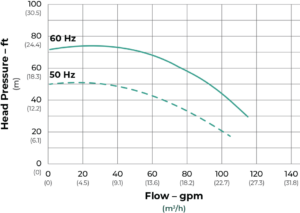

SeaStrong Silver Bullet SB-137 Series flow curve

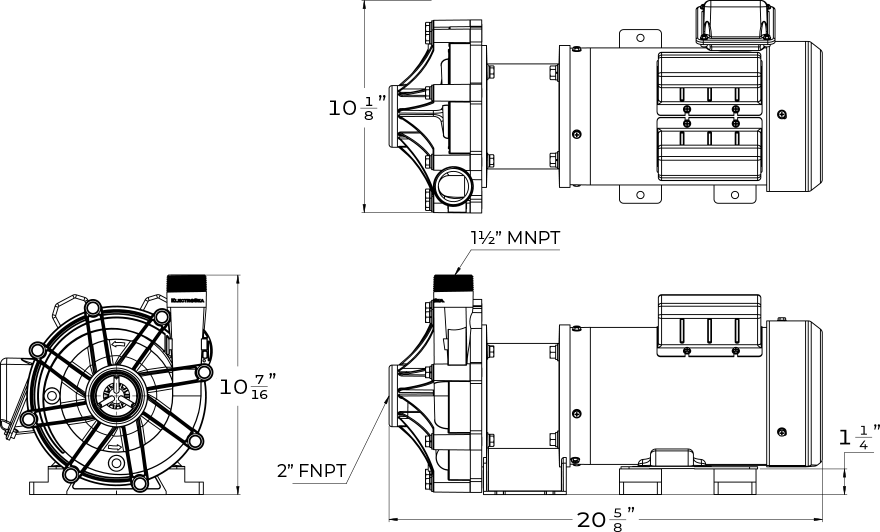

SeaStrong Silver Bullet SB-137 Series line drawings

Product Information

  • Applications

    • Air conditioner
    • Chiller
    • Refrigerator
    • Livewell
    • Seawater and corrosive fluids
  • Features

    • Sealless, magnetic drive
    • Close coupled pump
    • Centrifugal design
    • Glass-filled polypropylene head
    • Reinforced 316L input ring
    • Washdown, IP55-rated motor
    • Stainless Steel
  • Technical Data

    • NPT Connections
    • TEFC Motor
    • Single Phase
    • NEMA 56C Frame

Pump Specifications

Inlet

2″ FNPT

Outlet

1.5″ MNPT

HP

2

Max flow

115 gpm

Max head

74 ft

Phase

1

Voltage

115/208-230 VAC

Current

19.0/9.5 Amp

Frequency

50 or 60 Hz

Exterior

Stainless steel

Note: product images for illustration purposes only and may not be an exact representation of the product.
ElectroSea reserves the right to change product images and specifications at any time without notice.
