ClearLine CL-990 by ElectroSea

Biofouling prevention for air conditioners, chillers and pipework

Electrosea’s ingenious solution to the barnacle problem is not to remove them—but to prevent them growing in your raw water lines in the first place. ClearLine is a vessel electrochlorination system that generates a low level of chlorine from seawater. ClearLine protects your air conditioners, chillers and pipework from biofouling. ClearLine is ElectroSea’s original marine growth prevention system and has been installed on more than 65 different boat manufacturers with more than 11 million run hours. If you want to protect your seawater cooled equipment and have an existing sea strainer that you want to keep in place, then choose ClearLine and Never Descale Again!

Use ClearLine with your existing sea strainer

Use ClearLine when you want to retain your existing sea strainer. ClearLine is plumbed in on the pressure side of your seawater pump and located after your existing sea strainer. A secondary “return chlorination line” t-fitting can be added to direct a portion of the chlorinated seawater to your existing strainer basket. ClearLine can be installed during new build or refit. Simply connect the ClearLine canister inlet and outlet ports after the seawater pump, and connect the Control Unit to 12/24 VDC.

clearline-how-it-works-animation

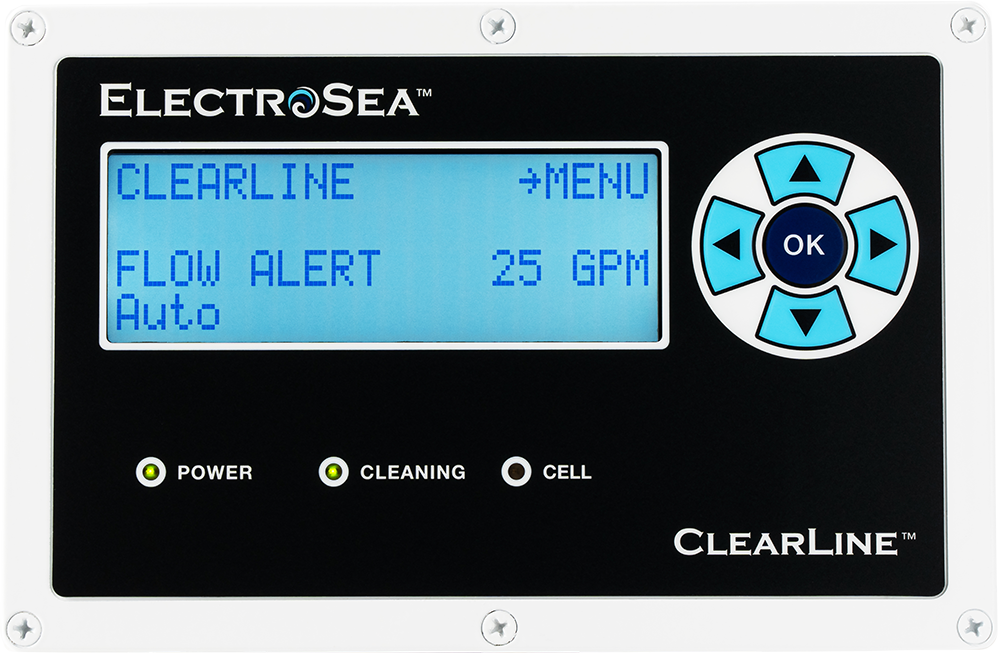

flow alert on ClearLine display

Real-time flow monitoring and low-flow alert

ClearLine monitors your seawater flow in real-time and generates a precise, low level of chlorine. The large backlit display and bright LED lights show the system is “Cleaning” and preventing unwanted marine growth. ClearLine is smart and will alert to a “Low Flow” condition so you can check your raw water system, pump and separate sea strainer for any problems. ClearLine tells you exactly how much seawater is flowing through your seawater system in real-time at all times.

We'll help you select a ClearLine System sized for your boat's air conditioners and chillers.

Product FAQs

Installation process

Most installations can be completed in 1-2 days.

Yes! ElectroSea products can be installed while the boat is in the water.

ElectroStrainer is about the same size as a traditional sea strainer.

Certain ElectroSea products can be installed by end-users. Contact ElectroSea for more information.

Chemicals or additives

Seawater flows through titanium plates that are coated with a special metal oxide catalyst. When this coating is electrified by DC current, a chemical reaction occurs and NaOCl (chlorine) is generated.

ElectroSea’s ClearVis contact-less flow sensor measures seawater flowing through the intake. Flow-rate data from ClearVis is sent to the Control Unit and specifies precisely how much chlorine ElectroStrainer or ClearLine should generate in real time.

No chemicals or additives are required. ElectroStrainer and ClearLine electrochemically generate a low, safe level of chlorine directly from the seawater that flows through our systems. There are no chemicals that are added, and you’ll never need to descale your lines again!

Acid descaling does not prevent biofouling and marine growth. It is an expensive process that you have to perform over and over again. If you have ElectroStrainer or ClearLine, then you Never Have to Descale Again!

Learn More

Maintenance and warranty

ElectroStrainer and ClearLine are warrantied for a period of two years from the date of end-user purchase.

ElectroSea will NOT void your air conditioner, chiller, or pump warranty. ElectroSea is safe to use with any marine air conditioner, chiller, and seawater pump. ElectroSea actually helps your equipment work more efficiently as it keeps your condenser coils free and clear of marine growth. ElectroSea has over 11 million successful run hours on 65+ boat brands.

There is no scheduled maintenance. The Control Unit will tell you if you have “Low Flow / Check Strainer” alert. If so, simply remove the strainer basket and screen and rinse with fresh water.

The electrochemical cell will last two to five years depending on use hours, flow rate, and other factors.

There is a red “cell” light on the Control Unit that will be illuminated at the end of life.

Safe for my boat, air conditioner and the environment?

Yes – ElectroStrainer and ClearLine are safe for your boat. ElectroSea has over 11 million successful run hours on 65+ boat brands and is standard / option on major brands.

Yes – ElectroStrainer and ClearLine are safe for air conditioners with copper nickel heat exchangers. ElectroSea creates about the same amount of chlorine found in tap drinking water. Further, preventing biofouling with ElectroSea is better then frequent “acid descaling,” which actually strips away a small layer of copper nickel each time it is performed.

Yes – ElectroStrainer and ClearLine are electrically isolated and will NOT cause galvanic corrosion.

Yes – ElectroStrainer and ClearLine are safe for the environment and generate about the same level of chlorine in tap drinking water. Chlorinated seawater has a very short half-life with 66% being oxidized in less than 1 minute. Chlorine is safer than frequent “acid descaling” that uses hydrochloric and other harsh acids which are toxic and harmful to humans.

ElectroStrainer and ClearLine require seawater with salinity greater than 20 parts per thousand (ppt). Vessels often encounter brackish or fresh water when cruising inland and from extended storms and freshwater run-off. This low salinity will not harm ElectroStrainer and ClearLine, and they will begin generating chlorine again when salinity is adequate.
