Selecting the right pump for your boat just got easier. Nine impeller speed settings let you match the pump to your system in seconds, even after it’s installed. No head-pressure math, no swapping pumps, no re-plumbing when the system changes.
No bleeder valves. No manual priming. No venting the air from the system.
Selecting the right pump for your boat just got easier. Nine impeller speed settings let you match the pump to your system in seconds, even after it’s installed. No head-pressure math, no swapping pumps, no re-plumbing when the system changes.
The sealless design has only one moving part – eliminating the motor shaft and several other components that are common sources of corrosion and wear in traditional pumps.
Fewer parts means fewer failure points: no shaft seizures, no seal leaks, and quieter operation.
Pick an impeller speed setting to see the corresponding flow curve for SeaStrong SolidDrive SD02-SP. Note that for any pump, actual performance will depend on head pressure.
SELECT A SPEED SETTING BY CHOOSING AN OPTION BELOW
Speed setting
9
*Actual performance depends on feet of head. Max head 29 ft / 8.8 m.

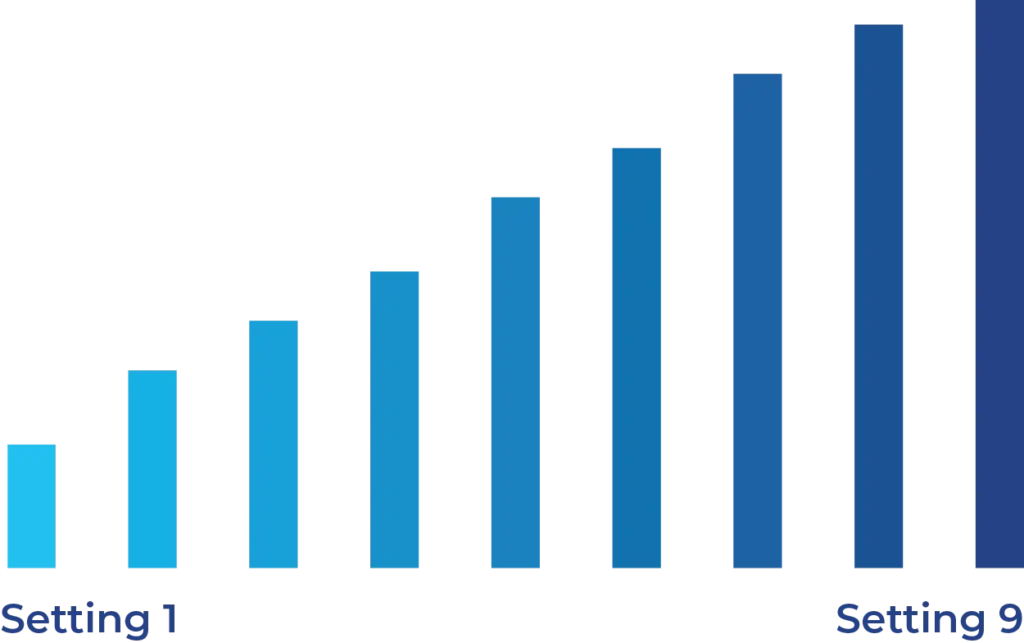

| Speed setting | Typical (GPM) | Best efficiency (GPM) | Max* (GPM) |
|---|---|---|---|
| 9 | 8 to 16 | 12 | 23 |
| 8 | 7 to 15 | 11 | 22 |
| 7 | 6 to 13 | 9 | 20 |
| 6 | 5 to 12 | 8 | 17 |
| 5 | 4 to 11 | 7 | 15 |
| 4 | 3 to 9 | 6 | 12 |
| 3 | 2 to 7 | 5 | 10 |
| 2 | <5 | 3 | 8 |
| 1 | <3 | 2 | 5 |
| 0 | OFF | OFF | OFF |
Test conditions: 60 Hz · sea level · 68 °F (20 °C) · SG 1.0
SeaStrong Solid Drive offers nine selectable impeller speeds. Nine flow curves, flow (0–25 GPM) against head pressure (0–30 ft).
| Inlet (FNPT) | 1 in / DN25 |
|---|---|
| Outlet (FNPT) | 1 in / DN25 |
| Max flow | 23 gpm / 87 lpm |
| Max head | 29 ft / 8.8 m |
| Voltage | 115 / 230 VAC |
| Phase | 1 |
| Amps | 5.2 / 2.6 |
| Weight | 8.7 lb / 4.0 kg |
| Dimension | Inches | Millimeters |
|---|---|---|
| A | 2.54 in | 64.5 mm |
| B | 3.46 in | 87.8 mm |
| D | 2.05 in | 52.0 mm |
| G | 3.41 in | 86.7 mm |
| H | 6.49 in | 165.0 mm |
| I (NPT) | 1.00 in | 25.4 mm |
| J | 5.96 in | 151.3 mm |
| K | 6.58 in | 167.2 mm |
| L | 10.48 in | 266.3 mm |
| O (NPT) | 1.00 in | 25.4 mm |
| W | 7.70 in | 195.7 mm |
Ready to get a quote? Give us some info about your boat and current pump, and we’ll take care of the rest.
